Connection Joints
Designed to protect vulnerable connection areas against impact from excavated materials and site conditions.
Made in Saudi Arabia · Pipeline Protection Systems
Pipeline Protection Solutions for Critical Infrastructure
PrimeSeal develops practical, field-ready mechanical protection solutions for water, wastewater, oil, gas, and infrastructure pipeline projects.
Featured Product
PrimaTape™ Mechanical Protection Cement Tape
25+Years industry expertise
ASTM G14Impact resistance tested
590°FThermal stability up to 310°C
8 LayersRecommended protection build-up
About PrimeSeal
Specialized mechanical protection for demanding pipeline environments.
PrimeSeal is a privately held enterprise headquartered in Riyadh, Saudi Arabia, specializing in cement-based mechanical protection solutions for pipeline infrastructure.
With long-standing industry expertise across piping, sanitary ware, electrical distribution, and infrastructure markets, PrimeSeal focuses on durable, practical solutions for contractors, EPCs, distributors, utilities, and asset owners.
Target Markets
Saudi Arabia · Middle East & Africa · EU
Flagship Product

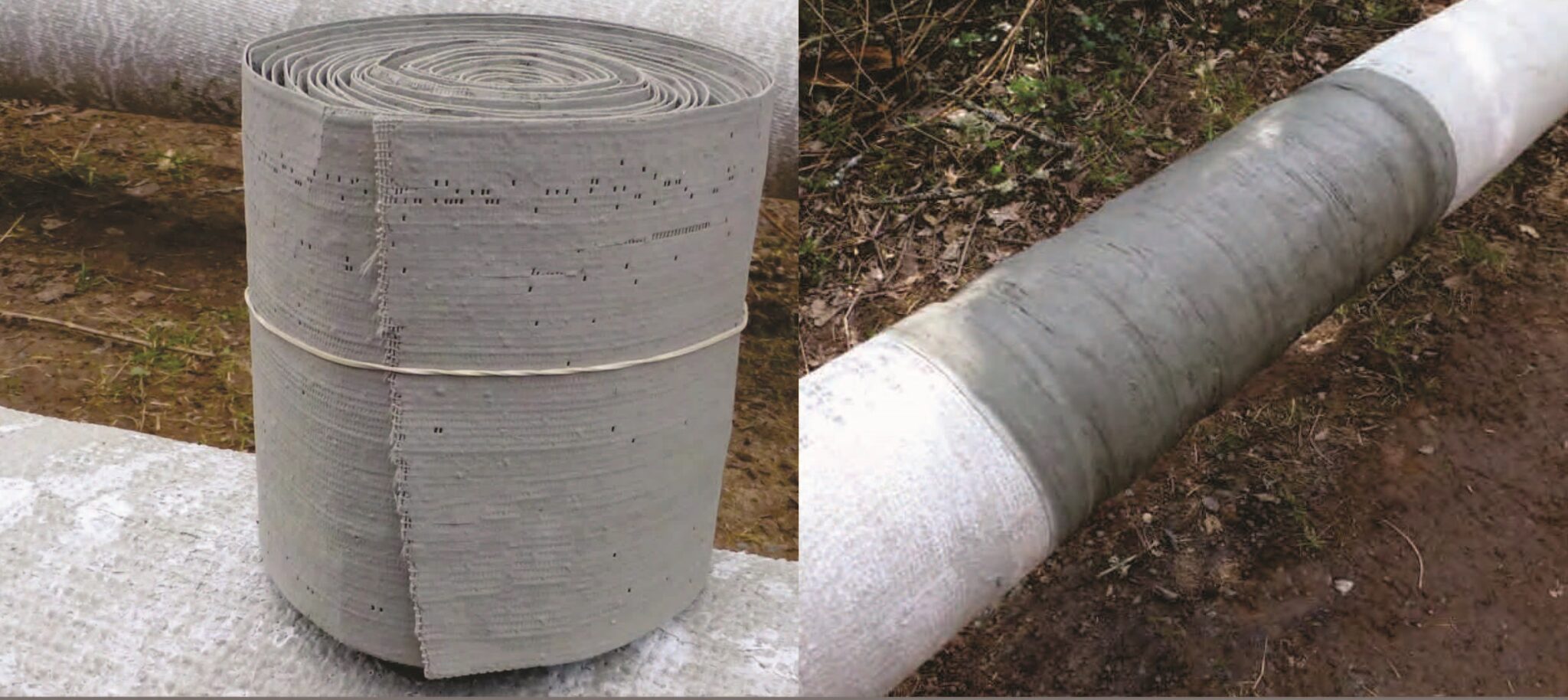

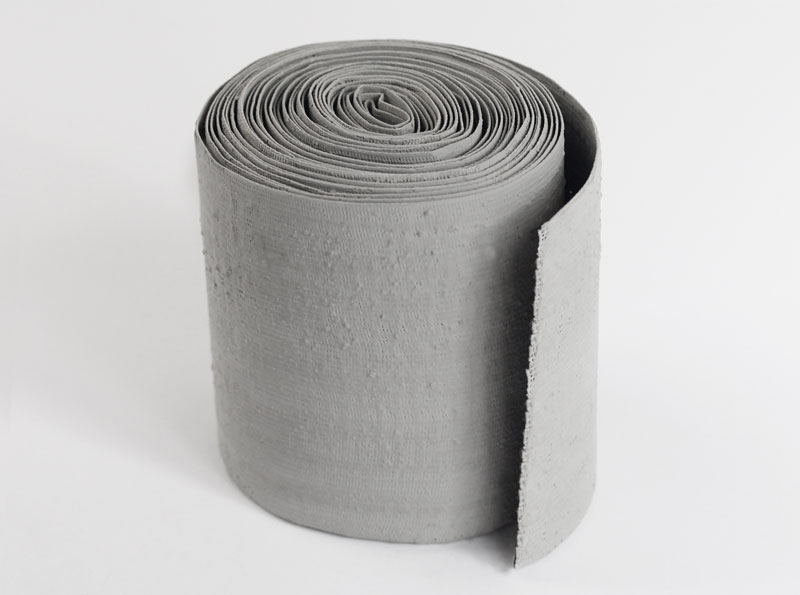

PrimaTape™ Mechanical Protection Cement Tape
PrimaTape™ is a high-quality woven fabric impregnated with special cement. It is activated by water before application and wrapped around pipe fittings, welds, elbows, and connection joints to provide secure mechanical protection against impact and stone chipping.
- High impact resistance for buried pipeline protection
- Quick and easy to process and apply on site
- No special tools or equipment required
- Cost-effective alternative to excessive sand backfilling
- Environmentally friendly and safe for drinking water pipe protection
Applications
Built for fittings, welds, elbows, and connection joints.
PrimaTape™ supports both low-pressure water and wastewater pipelines and high-pressure oil and gas pipelines.

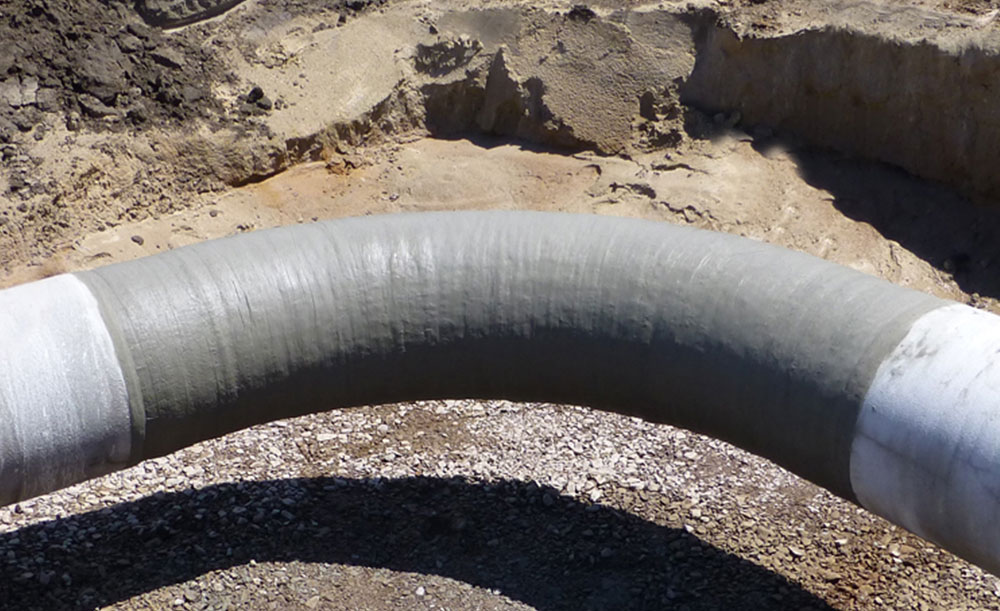

Pipe Elbows
Suitable for elbows and shaped fittings requiring durable field-applied protection.

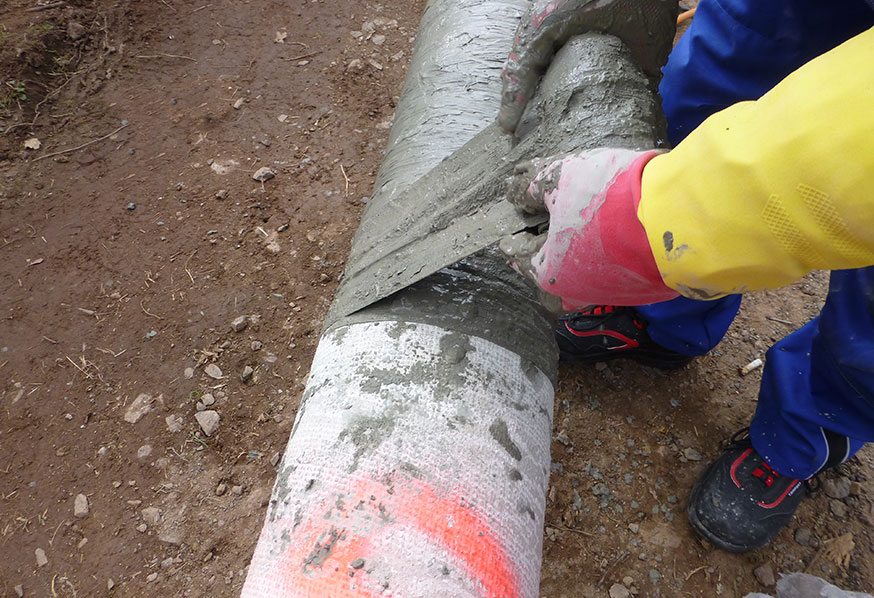

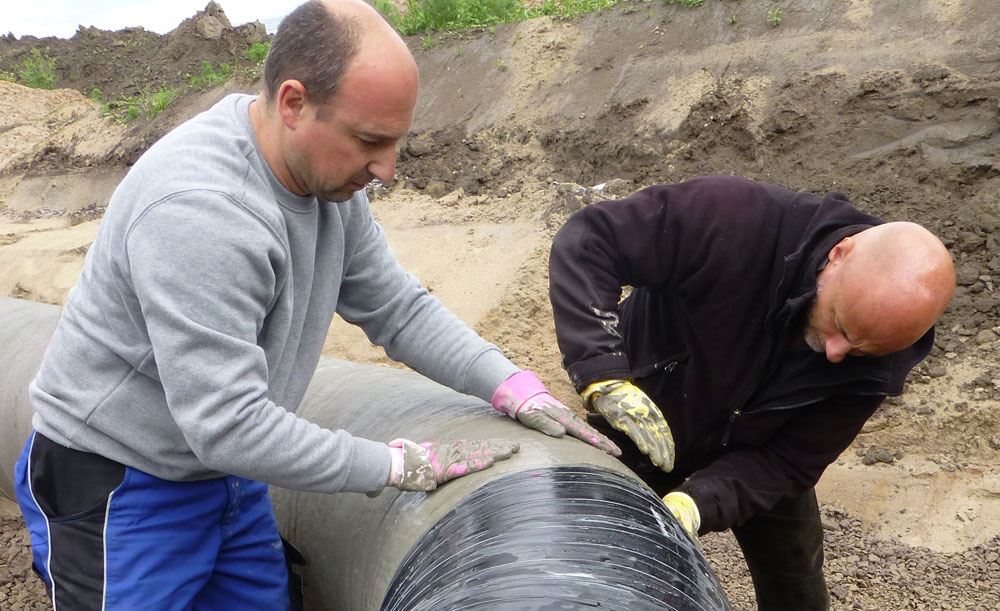

Field Installation
Activated with water and applied on site with light tension and 50% overlap until the required layers are completed.
Why PrimaTape™
Practical protection designed for real project conditions.
🛡️
High Impact Resistance
Provides mechanical protection against impact and stone chipping.
⚙️
Easy Application
Water-activated, fast to process, and no special tools needed.
💧
Water Pipe Safe
Can be used to protect drinking water pipes.
🌍
Environmentally Friendly
Water-based and non-toxic composition materials.
Technical Data
PrimaTape™ product specifications.
Roll Length20 ft / 6 m
Roll Width4.7 in / 12 cm
Roll Weight1.54 lb / 700 g
Thermal StabilityUp to 590°F / 310°C
Processing Time4–10 minutes
Setting Time7 minutes at 22°C
Initial Curing3 hours
Full Strength28 days
Final Curing48 hours
Impact ResistanceASTM G14 · 60.3 ± 11.0 in·lb
Packaging12 rolls/box · 45 boxes/pallet
Shelf Life6 months after delivery note date
Application Method
Simple water-activated installation process.
01
Prepare the Area
Prepare the treated area, apply primer, wrap the coating, and complete related tests.
02
Activate in Water
Place the tape upright in cold water until fully soaked and bubbles stop appearing.
03
Drain Excess Water
Allow excess water to drain, then gently squeeze the tape with both hands.
04
Wrap with Overlap
Wrap inward with light tension and 50% overlap until the required eight layers are completed.
Industries Served
Supporting infrastructure and pipeline markets.
Water PipelinesWastewaterOil & GasPipeline RehabilitationContractorsDistributorsAuthorities & SpecifiersPipeline Suppliers
الحماية الميكانيكية لخطوط الأنابيب
حلول سعودية لحماية وصلات وخطوط الأنابيب من الصدمات.
توفر شركة برايم سيل منتج PrimaTape™ كشريط حماية ميكانيكية إسمنتي يتم تفعيله بالماء ويستخدم لحماية وصلات الأنابيب، مناطق اللحام، الأكواع، والتجهيزات في مشاريع المياه، الصرف الصحي، النفط والغاز داخل المملكة العربية السعودية، دول الخليج، منطقة الشرق الأوسط، والأسواق العالمية.
حماية وصلات الأنابيب
يساعد PrimaTape™ على حماية مناطق الوصلات واللحام من الأضرار الميكانيكية والصدمات أثناء أعمال الردم والتركيب.
مناسب للبنية التحتية
يخدم مشاريع خطوط المياه والصرف الصحي والنفط والغاز والمقاولين والموزعين وموردي مستلزمات الأنابيب.
صناعة سعودية
حل عملي وسهل التطبيق في الموقع، مع وثائق فنية ودعم للمشاريع داخل السعودية وخارجها.
Resources
Download product and company documents.
📄
PrimaTape™ Datasheet
Product specifications, application guidance, and technical standards.
Download PDF 📘PrimaTape™ Brochure
Overview, benefits, applications, packaging, and quantity estimate table.
Download PDF 🏢PrimeSeal Company Profile
Company background, mission, markets, and contact information.
Download PDF
